Edge Detector
Modified on 2011/03/18 16:39 by Administrator — Categorized as: Digital Image Processing
Edge

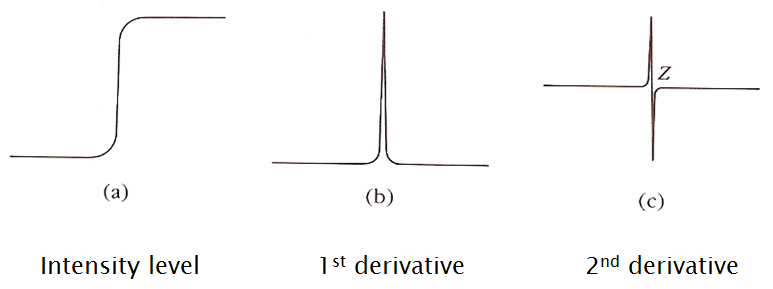

Points where a large change in image brightness over a short spatial distance occurred
is defined by a discontinuity in gray-level values
Roberts Operator

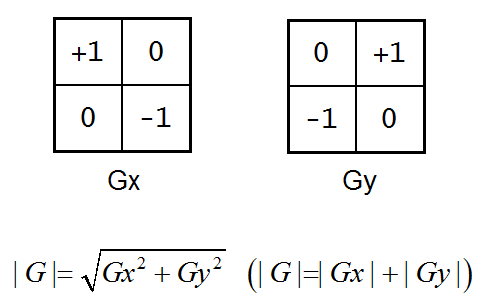

It is the simplest of the edge detection operators and will work best with binary images.

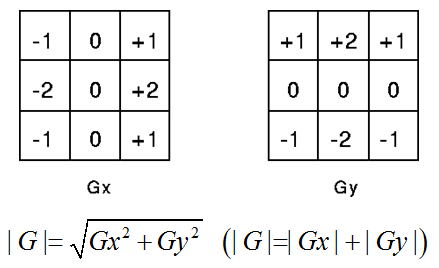

Sobel Operator

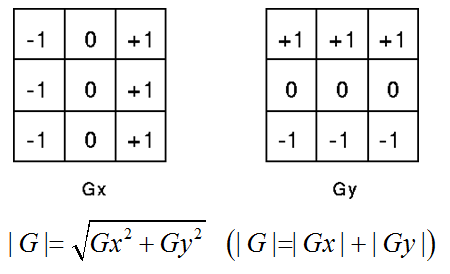

Prewitt Operator

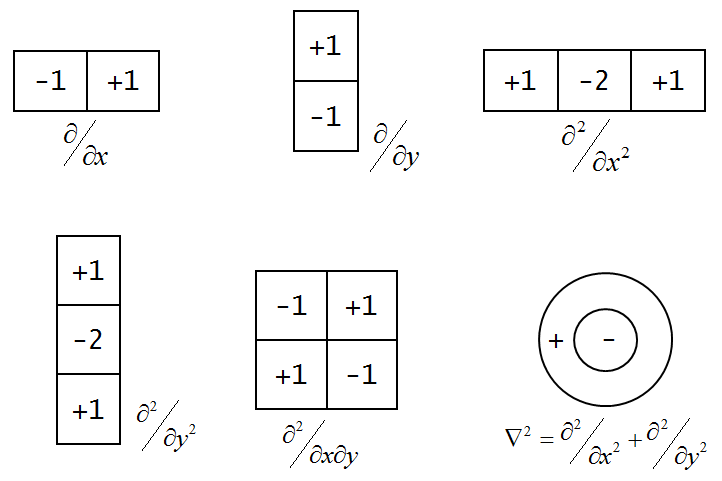

Derivative operator
Zero-crossing
Laplacian Gaussian

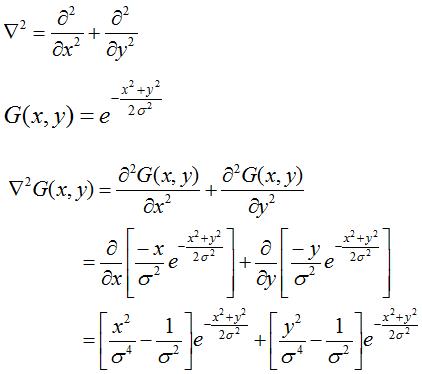

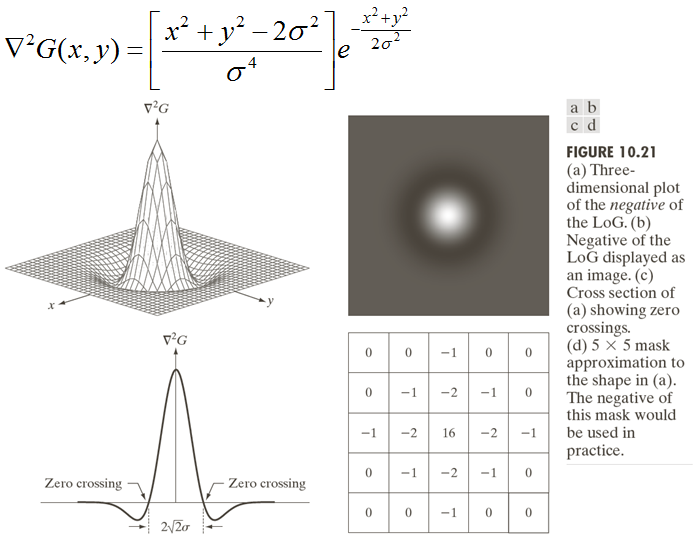

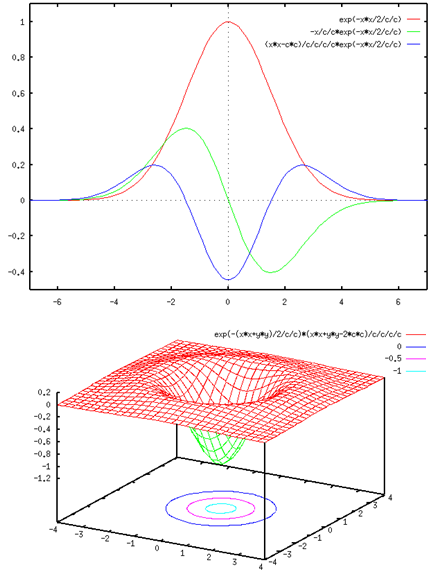

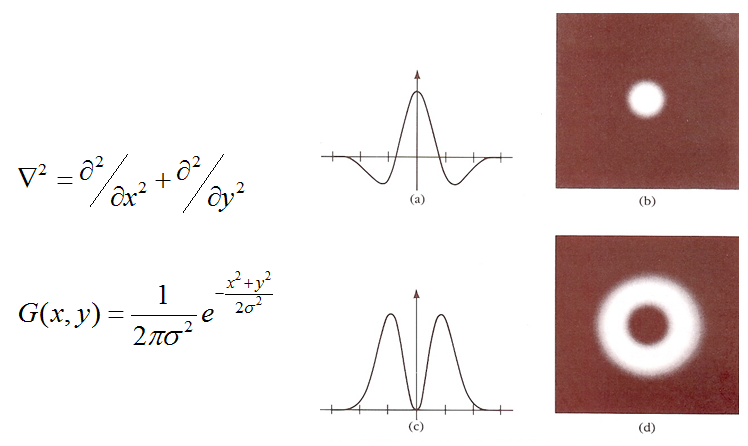

Laplacian of Gaussian (LoG)

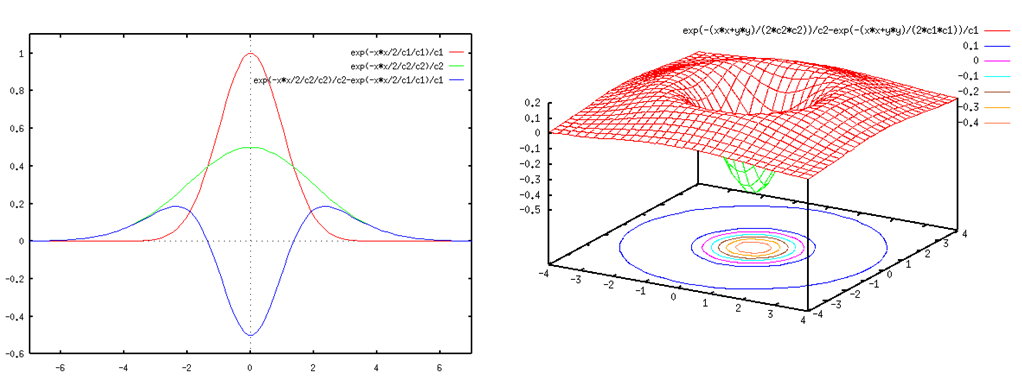

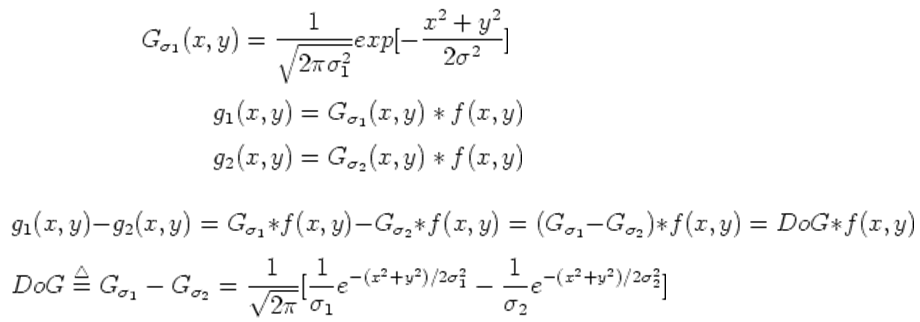

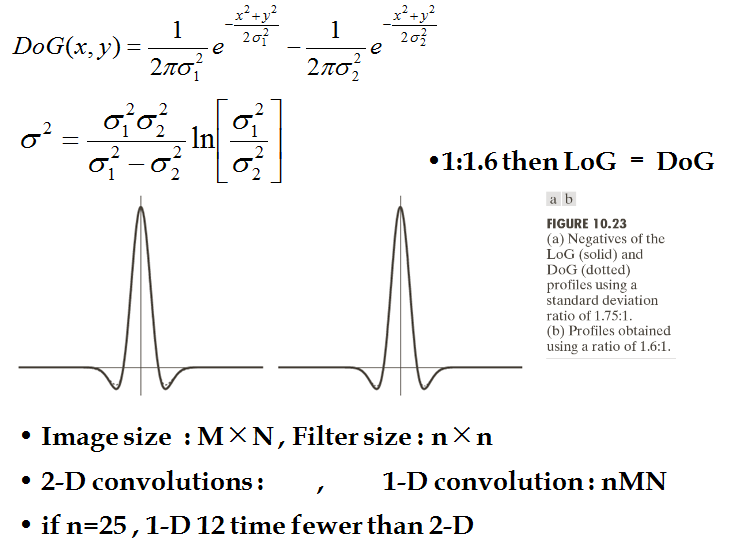

Difference Of two Gaussian : DOG

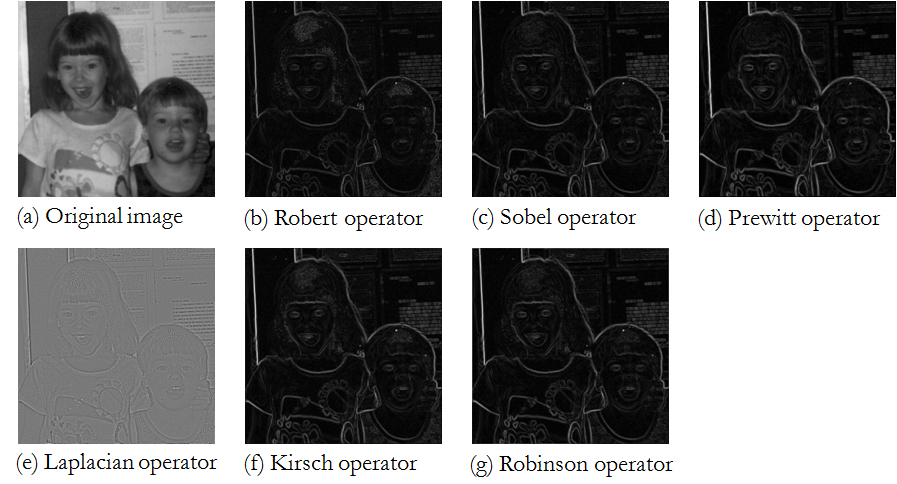

Edge Detector
Edge Detector - Noise

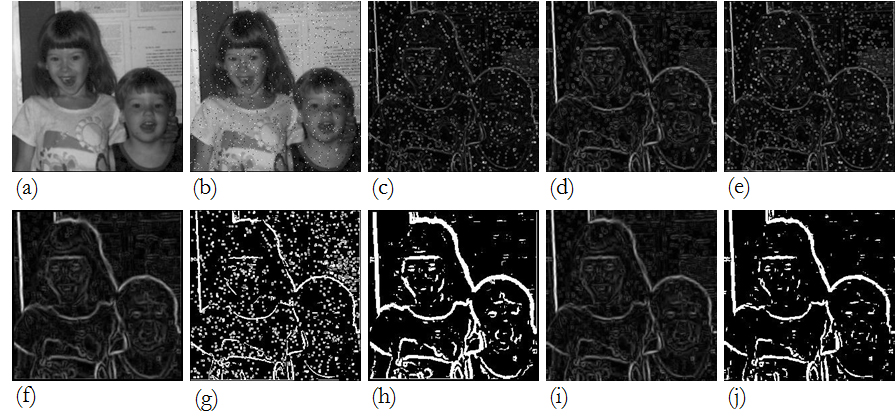

(a) Original image. (b) Image with added noise. (c) Sobel with a 3x3 mask. (d) Sobel with a 7x7 mask. (e) Prewitt with a 3x3 mask. (f) Prewitt with a 7x7 mask. (g) Result from applying a threshold to the 3x3 Prewitt. (h) Result from applying a threshold to the 7x7 Prewitt. (i) Truncated pyramid with a 7x7 mask. (j) Results from applying a threshold to the 7x7 truncated pyramid.
